Various factors will influence the choice of the retainer solution chosen, such as:
- How many times will the socket be opened each day?
- Cost of socket?
- Is there any space limitation for the socket ?
- Access required to the die of chip / heat dissipation (open top?)
PLEASE SELECT THE RETENTION – RETAINER SYSTEM FOR YOUR FUTURE SOCKET :

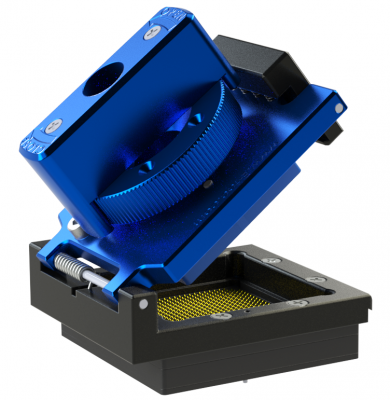

Clamshell Alu (> 200 contacts)
Clamshell Alu (> 200 contacts) 0.40 mm pitch (from 0.40 mm to 0.49 mm) |
|
|
BEJ####-04E#-######55L# The Elastomer Solderless compression Test Sockets are ideal technical solution for good signal integrity with low signal loss. The sockets are available for any chip size and pitch and are attached with 2, 4 or 8 screws to the PCB. The socket outline will be kept to a minimum and special clearances can be offered to avoid components on the PCB. |
